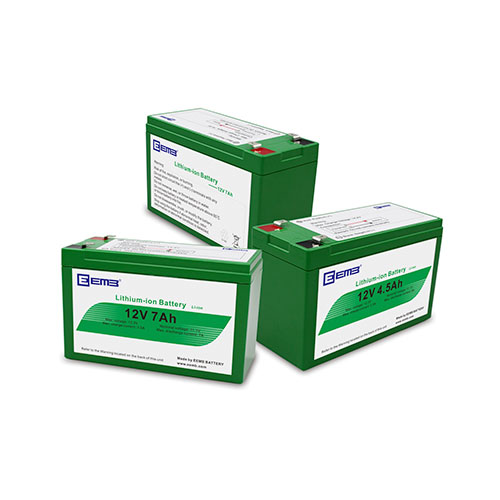

12V DC Battery, 12V 4.5AH/7AH battery Pack, ATV Battery
12V Super Energy SLF&SLM
  • •  No Spills, No Leaks & No Water to Check
  • •  Heavy Duty Terminals
  • •  Extreme Vibration Resistance
  • •  Improved Life Cycle Performance
  • •  Extremely Lightweight

certification

Electrical Characteristics
Model SLM5H12-L SLM5H12-H SLM7H12-L SLM7H12-H SLF5H12-H SLF7H12-H
Chemistry Li-ion Lithium Iron Phosphate
Typical Capacity at C/5 Drain Rate
After Full Charge at C/5 at + 20°C
4.5AH(100%DOD) 7AH(100%DOD) 4.5AH(100%DOD) 7AH(100%DOD)
Rating 50Whr 78Whr 58Whr 90Whr
Max.Charge Current 2.5A 3.5A 2.5A 3.5A
Max.Discharge Continuous Current 5A 25A 7A 25A 5A 7A
Max.Discharge Peak Current 10A 35A 14A 35A 10A 14A
Nominal Voltage 11.1A 12.8A
Max.Charge Cut-off Voltage 12.3A 14.2A
Min.Discharge Cut-off Voltage 9A 11.2A
Max.Charge Voltage 14.4A 14.4A
Cycle Life Hundreds of Cycles Thousands of Cycles
Operational Temperature Range
Charge 0~45℃
Discharge -20~60℃
Storage Temperature -20~45℃
Storage Humidity 60±25%
Mechanical Characteristics
L 150mm
H 90mm
W 65mm
Weight 0.5Kg 0.7Kg 0.7Kg 0.9Kg 0.7Kg 0.9Kg

This 12V Lithium-ion is dedicated to replace 12V Lead-Acid battery.

This plug & play

Can Power:
