CR Battery, CR14250,CR17335

Li-MnO2 Battery

High Capacity Type

Key Features:
  • •  High Voltage: 3.0V per cell.
  • •  Low self-discharge rate and long shelf life.
  • Self-discharge rate: less than 1% per year at room temperature.
  • • Stable discharge characteristics.
  • •  Applicable in a wide temperature range.
  • Operational temperature range:-40℃ to +85℃.
  • Consult EEMB when using batteries at temperatures beyond -40℃ to +85℃.
  • •  Superior leakage resistance.

certification

Remark:Customized design is available
High Capacity Bobbin Structure
Model Size Nominal Voltage
(V)
Nominal Capacity
(mAh)
Standard Discharge
Current(mA)
Max.Discharge Current(mA) Diameter
(mm)
Height
(mm)
Appox. Weight (g)
Continuous Pulse
CR10450BL 3.0 850 0.5 7 70 10 45 10.0

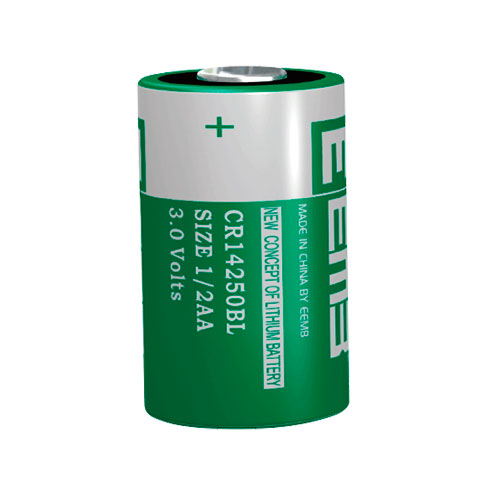

CR14250BL 1/2AA 3.0 900 1.0 7 70 14.5 25 11.0
CR14335BL 2/3AA 3.0 1100 0.5 8 80 14.5 33.5 16.0
CR14505BL AA 3.0 1800 1.0 10 100 14.5 50.5 22.0
CR17335BL 2/3A 3.0 1800 1.0 10 100 17.0 34.5 22.0
CR17450BL 3.0 2400 1.0 15 150 17.0 45 28.0

The parameters above are only for reference. For more information, please consult EEMB.
