certification
| Model | Size |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Standard Discharge Current(mA) |
Max.Discharge Current(mA) |
Diameter (mm) |
Height (mm) |
Appox. Weight (g) | |
| Continuous | Pulse | ||||||||
| ER10250 | – | 3.6 | 400 | 0.5 | 5 | 10 | 10.4 | 25.0 | 4.0 |
| ER10450 | AAA | 3.6 | 800 | 0.5 | 25 | 60 | 10.4 | 45.0 | 9.0 |
| ER13150 | – | 3.6 | 450 | 0.5 | 10 | 20 | 13.5 | 15.0 | 7.0 |
| ER13170 | – | 3.6 | 500 | 0.5 | 10 | 20 | 13.5 | 17.0 | 7.0 |
| ER14250 | 1/2AA | 3.6 | 1200 | 0.5 | 40 | 80 | 14.5 | 25.8 | 10.0 |
| ER14335 | 2/3AA | 3.6 | 1650 | 1.3 | 50 | 100 | 14.5 | 33.5 | 13.0 |
| ER14505 | AA | 3.6 | 2400 | 2.0 | 100 | 150 | 14.5 | 50.5 | 20.0 |
| ER17335 | 2/3A | 3.6 | 2100 | 2.0 | 100 | 200 | 17.0 | 33.5 | 20.0 |
| ER17505 | A | 3.6 | 3400 | 3.0 | 120 | 200 | 17.0 | 50.5 | 24.0 |
| ER18505 | – | 3.6 | 4000 | 2.0 | 120 | 200 | 18.7 | 50.5 | 30.0 |
| ER20505 | C | 3.6 | 4400 | 3.0 | 120 | 250 | 20.0 | 50.5 | 35.0 |

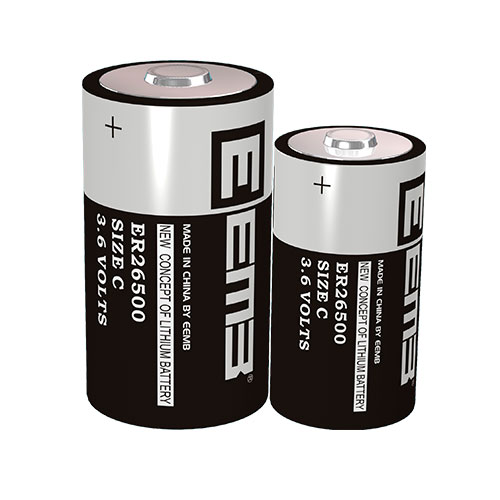

| ER26500 | C | 3.6 | 9000 | 2.0 | 200 | 400 | 26.2 | 50.0 | 53.0 |
| ER34615 | D | 3.6 | 19000 | 2.0 | 230 | 500 | 34.0 | 61.5 | 115.0 |
| ER341245 | DD | 3.6 | 36000 | 2.0 | 420 | 500 | 34.0 | 124.5 | 200.0 |
| ER9V | – | 10.8 | 1200 | 0.5 | 40 | 80 | 17.7*26.8*49.3 | 40.0 | |
The parameters above are only for reference. For more information, please consult EEMB.
