ER Battery, 3.6V ER battery, LS14250

Li-SOCL2 Battery

High Power Type

Key Features:
  • •  High operating voltage, stable during most of the application lifetime.
  • • Wide Temperature Range from -55℃ to +85℃.
  • •  Superior Shelf Life and Reliability: over 15 years shelf life at room temperature and self-discharge rate is less than 1% per year.
  • •  High Power type is spiral structure and best suited for high current discharge for both continuous & pulse currents. It may require activation before medium currents can be delivered.

certification

Remark:Customized design is available
High Power Type
Model Size Nominal Voltage
(V)
Nominal Capacity
(mAh)
Standard Discharge
Current(mA)
Max.Discharge Current(mA) Diameter
(mm)
Height
(mm)
Appox.Weight(g)
Continuous Pulse
ER14250M 1/2AA 3.6 750 4 120 250 14.5 25.2 11.0
ER14335M 2/3AA 3.6 1200 4 300 500 14.5 33.5 13.0
ER14505M AA 3.6 1800 10 500 1000 14.5 50.5 22.0
ER17335M 2/3A 3.6 1700 10 500 1000 17.0 33.5 21.0
ER18505M A 3.6 3200 10 1000 2000 18.8 50.5 30.0
ER20505M 3.6 3600 10 1000 2000 20.2 50.5 35.0
ER26500M C 3.6 6500 10 1000 2000 26.2 50.0 57.0

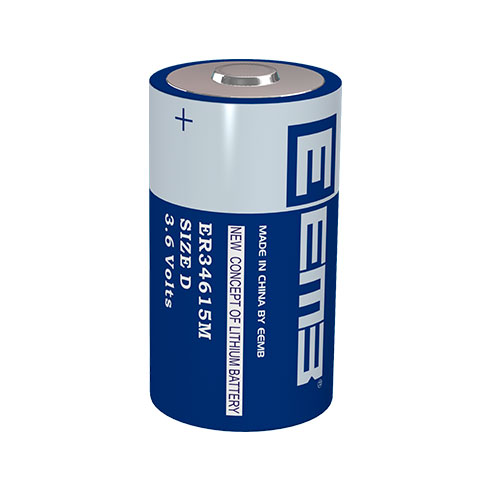

ER34615M D 3.6 14000 10 2000 3000 34.2 61.5 118.0

The parameters above are only for reference. For more information, please consult EEMB.
