ER Battery, High Temperature Type, 3.6v lithium battery

Li-SOCL2 Battery

High Temperature Type

Key Features:
  • •  High operating voltage, stable during most of the application lifetime.
  • •  Extension of temperature range up to +150℃.
  • •  Superior shelf life and high reliability: over 15 years shelf life at room temperature and self-discharge rate is less than 1% per year.

certification

Remark:Customized design is available
High Temperature Type
Model Size Nominal Voltage
(V)
Nominal Capacity
(mAh)
Standard Discharge
Current(mA)
Max.Discharge Current(mA)
Diameter
(mm)
Height
(mm)
Appox. Weight(g)
Continuous Pulse
ER14250S 1/2AA 3.6 600 50 50 100 14.65 25.2 10.0
ER14505S AA 3.6 1800 50 100 200 14.65 50.5 20.0
ER17335S 2/3A 3.6 1200 - 80 - 17.0 35.0 19.0

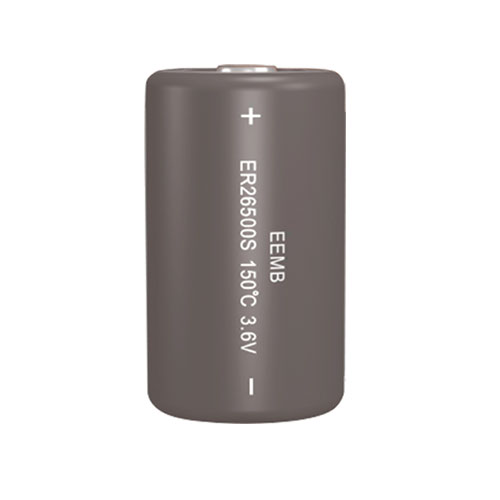

ER26500S C 3.6 5500 50 150 300 26.2 50.0 55.0
ER34615S D 3.6 12000 100 170 350 33.2 61.5 108.0
ER341245S DD 3.6 25000 200 400 800 33.2 124.5.5 220.0

The parameters above are only for reference. For more information, please consult EEMB.
