certification
| Model |
Nominal Voltage(V) |
Capacity (mAh) | Dimension(mm) |
Approx. Weight(g) |
|||
| Typical | Minimum | Thickness | Width | Height | |||
| LP452030HA | 3.7 | 160 | 150 | 4.5 | 20 | 30 | 3.2 |
| LP353048HA | 3.7 | 250 | 220 | 3.5 | 30 | 48 | 5 |
| LP403048HA | 3.7 | 450 | 420 | 4.0 | 30 | 48 | 9.0 |
| LP423048HA | 3.7 | 430 | 400 | 4.2 | 30 | 48 | 28.5 |
| LP503048HA | 3.7 | 550 | 520 | 5.0 | 30 | 48 | 11 |
| LP703048HA | 3.7 | 800 | 700 | 7.0 | 30 | 48 | 19.0 |
| LP883090HA | 3.7 | 2000 | 1800 | 8.8 | 30 | 90 | 45.5 |
| LP553448HA | 3.7 | 800 | 750 | 5.5 | 34 | 48 | 16.0 |
| LP603450HA | 3.7 | 880 | 800 | 6.0 | 34 | 50 | 13.5 |
| LP555590HB | 3.7 | 2300 | 2100 | 5.5 | 55 | 90 | 54.5 |
| LP451218HB | 3.7 | 40 | 30 | 4.5 | 12 | 18 | 1.1 |
| LP723048HB | 3.7 | 850 | 800 | 7.2 | 30 | 48 | 20.0 |
| LP532030HB | 3.7 | 200 | 190 | 5.3 | 20 | 30 | 5.2 |
| LP551522HB | 3.7 | 100 | 90 | 5.5 | 15 | 22 | 1.0 |
| LP681723HB | 3.7 | 150 | 130 | 6.8 | 17 | 23 | 3.0 |
| LP481530HC | 3.7 | 120 | 110 | 4.8 | 15 | 30 | 3.3 |

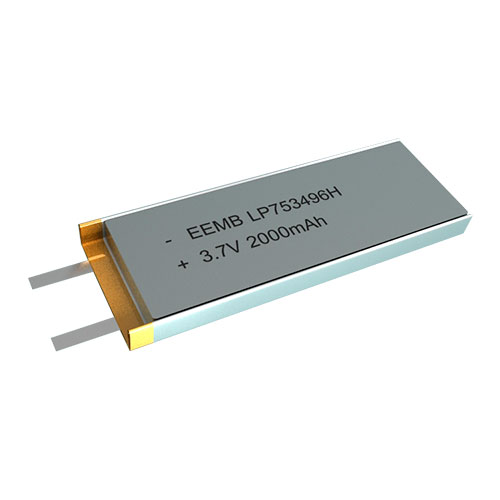

| LP753496HC | 3.7 | 2200 | 2100 | 7.5 | 34 | 96 | 48.0 |
| LP3834106HD | 3.7 | 1200 | 1100 | 3.8 | 34 | 106 | 29.0 |
| LP8242125HD | 3.7 | 4000 | 3800 | 8.2 | 42 | 125 | 80.0 |
| LP9245150HD | 3.7 | 5550 | 5400 | 9.2 | 45 | 150 | 111.0 |
| LP1042126HD | 3.7 | 5000 | 4800 | 10.0 | 42 | 126 | 35.0 |
| LP7842125HD | 3.7 | 3500 | 3300 | 7.8 | 42 | 125 | 70.0 |
Note:
* HA:5C-10C Continuous Discharge
* HB:10C-15C Continuous Discharge
* HC:15-20C Continuous Discharge
* HD:20C Continuous Discharge
* The thickness can be adjusted while the length and width of the battery remain the same.
The parameters above are only for reference. For more information, please consult EEMB.
