Smart EZ:

Smart EZ Solar Hybrid UPS & ESS--

More information please click http://monerator.com

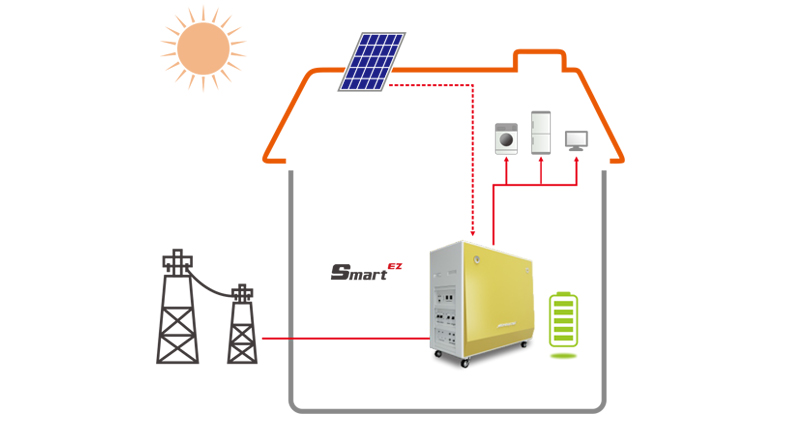

Smart EZ series is a compact solar hybrid UPS & ESS Battery System for home. It makes green energy 24/7 available in association with photovoltaic system and grid / generator. Electricity is getting more expensive in countries. Smart EZ stores daytime energy from PV and makes it available at any time, minimizing electricity purchase from the grid, which results in increased energy self-consumption at home and reduced overall electricity charges. In addition, rural areas where the power grid hardly covers can have stable and cheap electricity from PV system using Smart EZ series. And it can also be used as emergency power source when unexpected interruption occurs.

Smart EZ, Smart Hybrid UPS, Off Grid Cabin
Key Features:
  • •  Efficient and cozy design.
  • •  Compact size and high energy density.
  • •  Equipped with latest Li-ion battery technology.
  • •  Premium quality and long life cycle.
  • •  Safest Li-ion technology in the market.

certification

        UPS & ESS System
Items
EZ-F
EZ-M
AC Output
Rated Power
3 KVA
Nominal Voltage
220V / 50Hz or 110V / 60Hz
Standby Looses
14 Watt
Efficiency at Full Load
80%
Wave Form Type
Pure Sine Wave
Phase
Single Phase
Emergency Power Capacity
Yes
Transfer Time
< 8 ms
DC Output
No. of 12V Port
2
No. of 5V Port
2
Battery
Manufacturer
EEMB Battery
Technology
LiFePO4
Li-Mn
Nominal Capacity
5 KWH
Usable Capacity
4 KWH (80% DOD)
Cycle Life
6000 cycles @ 25℃, 80% DOD
3000 cycles @ 25℃, 80% DOD
Capacity Scalability
No
DC Input (PV)
Max. Power
1.5 KWP
Input Voltage
50-100 Vdc
Max. Input Current
30 Amp
PWM
Yes
PV Module Connectors
SA-50
Dimension (L*W*H)
380 * 840 * 800 mm
Weight (Approx.)
150 Kg
Operating Temperature
0 ~ +45℃
Storage Temperature
0 ~ +30℃
Humidity
Max. 85 % (non-condensing)
Altitude
0 ~ 3600 Meter
Enclosure
Indoor IP 21

Smart EZ, Smart Hybrid UPS, Off Grid Cabin

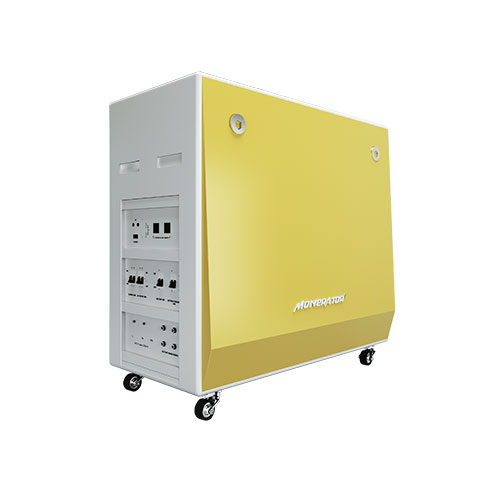

The All-in-One solution is energy efficient through its simple DC system, and easy to move due to its compact size and cozy design. DC system reduces energy loss because it goes through only one conversion process from the PV panel to the indoor appliances. In addition, its little compact design nicely matches with various places.




Smart EZ, Smart Hybrid UPS, Off Grid Cabin
