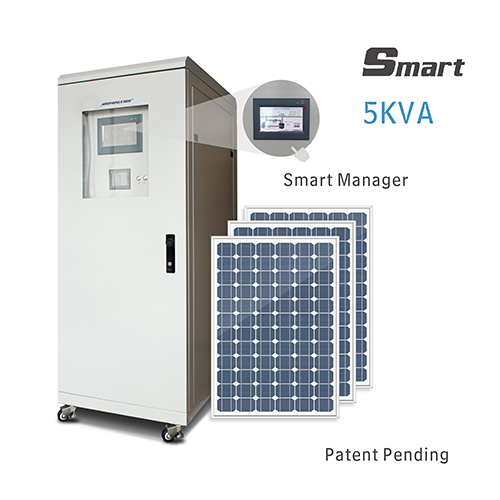

Monerator SMART Hybrid Power Storage (ESS)/ UPS system is a Battery system (SMART) saving power from Solar, or directly from the grid when utility rates are low. SMART maximizes self consumption, and powers your home or business whenever you need. SMART can also be used during power outage or emergency circumstances.

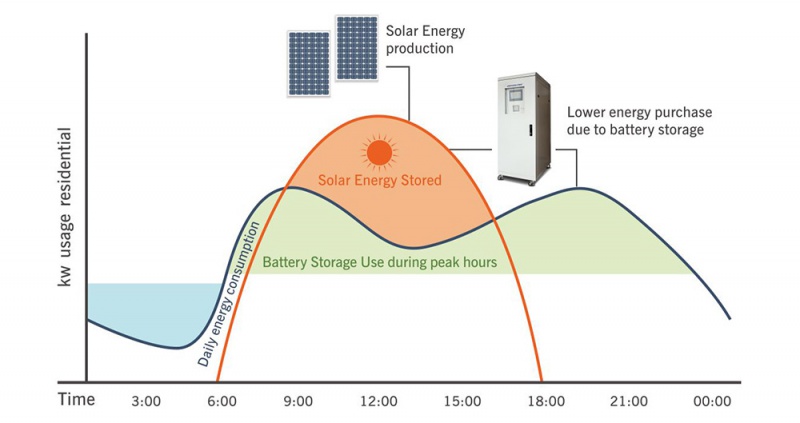

Modular, compact and automated-SMART battery system is easy to DIY, optimizing solar system of grid-tie, off-grid, or hybrid, or even just grid ONLY. If security and independent power is your concern, SMART can ease your mind and maximize your self-consumption.
Typical Hybrid UPS System - Scheme PLAN 3 | ||
Battery | ||
Chemistry | Li-ion (Fe) | |
Rated Battery Energy at C / 5 at 25℃ | 10 KWH (2P SMART 7ULF) | 20 KWH (4P SMART 7ULF) |
Nominal Voltage | 51.2 V | |
Working Voltage | 47 V - 56 V | |
BMS (Battery Management) | Included | |
BMS Communication | CAN | |
Service Lifetime @80% DOD, +25℃ | >6000 cycles | |
Input (Optional) | ||
AC Input | 100VAC-240VAC±10% 50-60Hz | |
Charge Current | 30 A | 60 A |
Solar Input | min. 50V / max. 100V, 1500 W | min. 50V / max. 100V, 3000 W |
Solar MPPT | Yes | |
Output (Optional) | ||
AC Output | 100VAC-240VAC±10%, 50Hz / 60Hz | |
Max. continuous Output power @ 50% SOC | 5 KW | 8 KW |
Max. Peak power 3S @ 50% SOC | 6 KW | 9 KW |
UPS (Uninterrupted Power Supply) | Included, 88% Efficiency, ≤4ms | |
System Management | ||
SMART Manager | Included | |
System Communication | RS 232 | |
Dimension ( L / W / H ) | 59.7/ 80.0 / 149.8 CM cabinet | --- |
Operating Temperature | 0℃ ~ +55℃ | |
Storage Temperature | -20℃ ~ +55℃ | |
Net Weight | 555 lbs | --- |
IP Level | IP20 |
