Smart Mini:

Smart MINI Solar Energy Storage & UPS Kit--

More information please click http://monerator.com

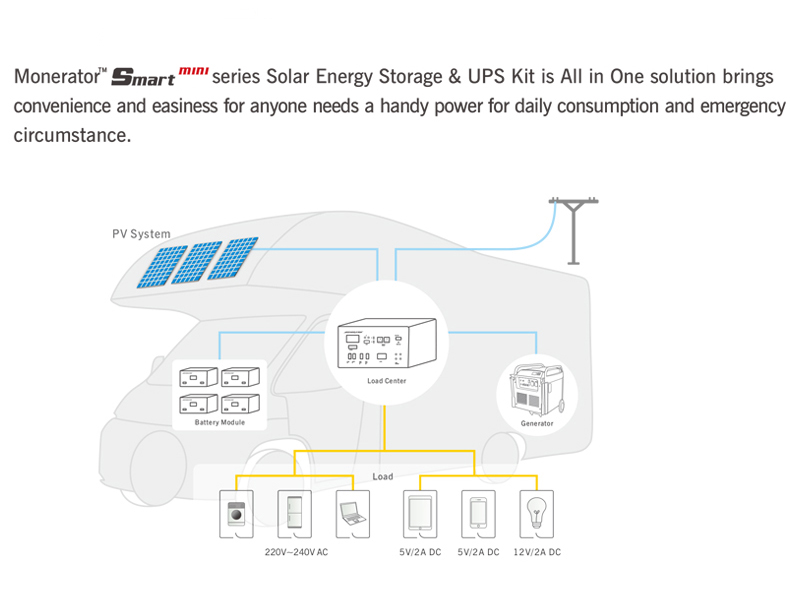

Smart mini series Solar Energy Storage & UPS Kit combines different power sources such as PV, Grid / Generator. It’s the best choice of self consumption and emergency backup power. Smart mini series are often in remote and off-grid conditions such as Lodge, Boat, RV, Camping, etc.

Smart MINI, Smart Hybrid UPS, Off Grid Cabin
Key Features:
  • •  Easy & Handy All In One Solution.
  • •  Friendly with Solar power, Grid power, Generator power.
  • •  AC220-240V 3KW, 12V & 5V DC.
  • •  1200WH per module, 1000Watts output per module.
  • •  Centralized Load Center to manage powers from different sources.

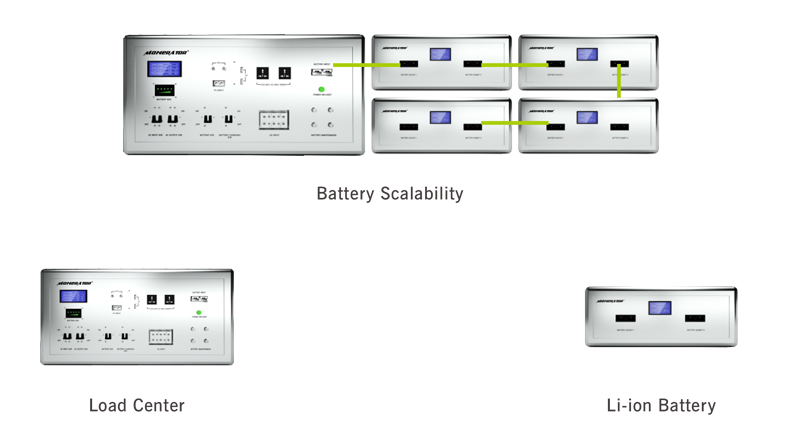

  • •  Easy power expansion.

certification


Main Specifications

        UPS & ESS System
Items
mini-F
mini-M
AC Output
Rated Power
2 KVA
Nominal Voltage
220V / 50Hz or 110V / 60Hz
Standby Looses
9 Watt
Efficiency at Full Load
80%
Wave Form Type
Pure Sine Wave
Phase
Single Phase
Emergency Power Capacity
Yes
Transfer Time
< 8 ms
DC Output
No. of 12V Port
2
No. of 5V Port
2
Battery
Manufacturer
EEMB Battery
Technology
LiFePO4
Li-Mn
Nominal Capacity
4 * 1.2 KWH (start up capacity)
Usable
4 * 0.96 KWH (start up capacity)
Cycle Life
6000 cycles @ 25℃, 80% DOD
3000 cycles @ 25℃, 80% DOD
Battery Dimension (L * W * H)
400 * 350 * 160 mm
Capacity Scalability
Yes
DC Input (PV)
Max. Power
1 KWP
Input Voltage
25-50 Vdc
Max. Input Current
40 Amp
PWM
Yes
PV Module Connectors
SA-50
Dimension (L*W*H)
400 * 600 * 350 mm
Operating Temperature
0 ~ +45℃
Storage Temperature
0 ~ +30℃
Humidity
Max. 85 % (non-condensing)
Enclosure
Indoor IP 21
