Solar LED lighting:

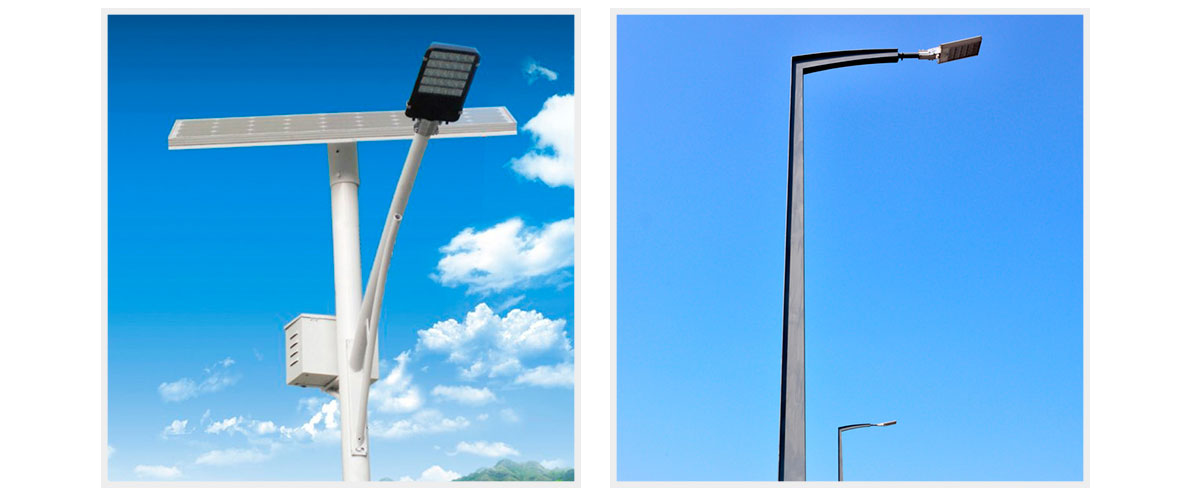

Compact Solar Outdoor LED Lighting consists of solar panels, LiFePO4 batteries, LED light and controller. It features with integrated design of light ray control and motion control, multi-safe design and easy installation. EEMB’s Compact Solar Outdoor LED Lighting is ideal for greenhouse, garden landscape, gate pathway, backyard, warehouse, parking lot. For both residential and commercial needs.

Solar LED Lighting
Key Features:
  • •  Advanced integrated design, easy and fast installation.
  • •  Adopt LiFePO4 battery, 5x the life of lead acid battery
  • •  Light output mode control automatically by built-in infrared sensor.
  • •  All weather design
  • •  Anti-theft bracket

certification

Main Specifications

  Model brief  a15 brief  a25 brief  b25
Physical Specification
  Light Source 8W LED lamp 8W LED lamp 15W LED lamp
  Solar Module 15 W 25 W 25 W
  LiFePO4 Battery 58 Wh 96 Wh 115 Wh
  AC Input Optional
  PIR Sensor Yes

  Over-load/Over-charge/

  Over-discharge Protection

Yes
  Dimension (L× W × T)mm 542×306×57 mm 792×306×57 mm
  Net Weight 6.2 kg 8.5 kg 8.5 kg
Light Output
  Luminous(typ.) Bright Mode: 880 lm 980 lm 1650 lm
Dim Mode: 440 lm 370 lm 500 lm
  Beam Type Bat Wing
  Visual Angle 140°×7
  Color Temperature 5000 k~6000 k
  Light Photosensitivity (typ.) 30  lx
Working Time* Bright Mode: ≧6.5 hrs ≧11 hrs ≧10 hrs
Dim Mode: ≧21 hrs ≧36 hrs ≧33 hrs
Environmental Rating
  Operational Temperature Charge 0℃~60℃
Discharge -20℃~60
  Storage Temperature -20~45℃
  IP Rate IP55
Environmental Rating
  Recommended Installation Height Range 3~4 m 3~4 m 3~5 m
 Recommended Installation Distance of Poles Range 10~15 m 10~15 m 12~20 m
Solar LED Lighting
